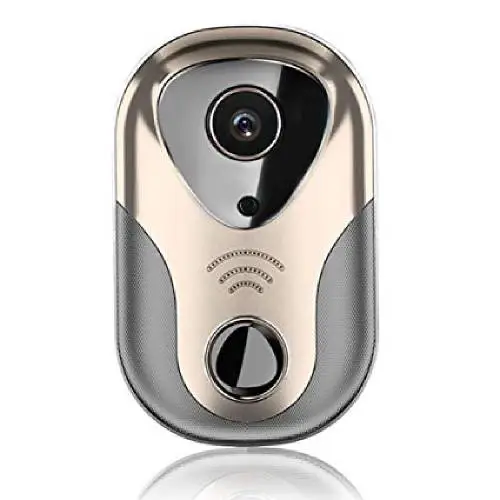

163EYE L1-NJ SMART VISUAL WIFI 1.3MP NETWORK HD INTERCOM DOORBELL , SUPPORT MICRO SD CARD & NIGHT VISION

Model:L1
Technical parameters
CPU:GM8135S+SC1045
APP Website：163eye.cc
Operating system: LNUX embedded operating system
Image sensor:1/4″HD CMOS 1Megapixel
Video standard:PAL / NTSC
video format:HD(1280*720P)VGA(640*480),QVGA(320*240)
Video coding:H.264
Video Frame Rate:1-30 fps
Video mode:Manual recording, timer recording, alarm recording
Video playback mode:mobile APP and PC client
Audio input/output:input: buit in 45DB microphone; Output: built in 8Ω 2W speaker
Lens:built in 3.6mm lens
Night vision:6pcs ir leds , 10 m IR night vision (ir cut option)
Local storage:32GB SD card , support 24H recording or alarm recording
Focus mode:manual
Wifi:support 80211B/G/N
Muilt Protocols:TCP/UDP、IP、HTTP、SMTP、DHCP、DDNS、UPNP、NTP
Image rotation:Mirror / inverted
Video control:support
Motion detection:support
Alarm action:Bell alarm / email /app push
Firmware upgrade: remote upgrade by network
System interface:1pc RJ45 10/100M adaptive interfaces,1pc TF/SD card interface , 1pc DC power interface
Reserved interface:1pc network interface , 1pc Electro-lock interface
Power:DC12V 2A
Operating Temperature:0-55degree
Application:Indoor
